Brackets - Mandrel
:Brackets
Ø10Ø13
Ø16
M6M8
M10
Ø8
Ø10Ø13
Ø16
:End-fittings
M4M6
M8
M10
M6M8
M10
M4M6
M8
M10
M4M6
M8
M10
111-70030-description
Galvanized steel
111-70023-description
Stainless steel 304
111-70024-description
Stainless steel 316
111-70188-description
Stainless steel 316
Shop By
Shopping Options
| View prices - Add to Cart | Material | M Mandrel diameter (in) |
Attached | S Gap (in) |
Max. force Comp. gas spring (lbs) |
Max. force Extension gas springs (lbs) |
SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galvanized steel | 0.1575 | Inside | 0.1575 | 22.4809 | 22.4809 | EF-BR11Z |
|
|
||||
| Stainless steel 316 | 0.2362 | N/A | N/A | 562.2472 | 562.2472 | BR-360-316 |
|
|
||||
| Stainless steel 316 | 0.2362 | Inside | 0.2756 | 146.1258 | 146.1258 | BR-19-316 |
|
|
||||
| Galvanized steel | 0.2362 | Inside | 0.2756 | 146.1258 | 146.1258 | BR-19-Z |
|
|
||||
| Stainless steel 316 | 0.2362 | Inside | 0.2756 | 146.1258 | 146.1258 | BR-280-316 |
|
|
||||
| Stainless steel 304 | 0.2362 | Inside | 0.2756 | 146.1258 | 146.1258 | EF-BR19S |
|
|
||||
| Galvanized steel | 0.2362 | Inside | 0.2756 | 146.1258 | 146.1258 | EF-BR19Z |
|
|
||||
| Stainless steel 316 | 0.2362 | Outside | 0.2756 | 146.1258 | 146.1258 | BR-24-316 |
|
|
||||
| Stainless steel 316 | 0.2362 | Outside | 0.2756 | 146.1258 | 146.1258 | BR-18-316 |
|
|
||||
| Galvanized steel | 0.2362 | Outside | 0.2756 | 146.1258 | 146.1258 | BR-18-Z |
|
|
- EF-BR11ZIn stock: 5
Material Galvanized steelM - Mandrel diameter (in) 0.1575Attached InsideS - Gap (in) 0.1575Max. force - Comp. gas spring (lbs) 22.4809Max. force - Extension gas springs (lbs) 22.4809
- BR-360-316In stock: 142
Material Stainless steel 316M - Mandrel diameter (in) 0.2362Attached N/AS - Gap (in)Max. force - Comp. gas spring (lbs) 562.2472Max. force - Extension gas springs (lbs) 562.2472
- BR-19-316In stock: 2,160
Material Stainless steel 316M - Mandrel diameter (in) 0.2362Attached InsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258

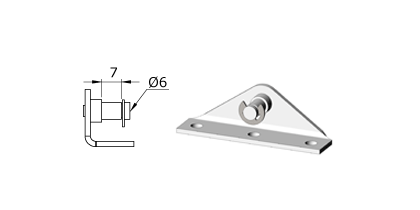

- BR-19-ZIn stock: 0
Material Galvanized steelM - Mandrel diameter (in) 0.2362Attached InsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258

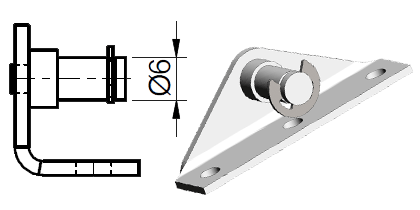

- BR-280-316In stock: 230
Material Stainless steel 316M - Mandrel diameter (in) 0.2362Attached InsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258
- EF-BR19SIn stock: 73
Material Stainless steel 304M - Mandrel diameter (in) 0.2362Attached InsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258
- EF-BR19ZIn stock: 1,721
Material Galvanized steelM - Mandrel diameter (in) 0.2362Attached InsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258
- BR-24-316In stock: 1,890
Material Stainless steel 316M - Mandrel diameter (in) 0.2362Attached OutsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258
- BR-18-316In stock: 577
Material Stainless steel 316M - Mandrel diameter (in) 0.2362Attached OutsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258
- BR-18-ZIn stock: 4,948
Material Galvanized steelM - Mandrel diameter (in) 0.2362Attached OutsideS - Gap (in) 0.2756Max. force - Comp. gas spring (lbs) 146.1258Max. force - Extension gas springs (lbs) 146.1258
Material
We have end-fittings in two different materials:
- Stainless Steel 304
- Electro galvanized
Not all end-fittings are available in both materials.
