Ball-joint

Technical drawing - Ball joint

99-70030-description

Galvanized steel

99-70084-description

Plastic

99-70023-description

Stainless steel 304

99-70024-description

Stainless steel 316

Shop By
Shopping Options
IT - Internal thread (in)
ET - External thread (in)
A - Center length (in)
Max. force - Comp. gas spring (lbs)
Max. force - Extension gas springs (lbs)

Items 1-10 of 26

Set Descending Direction
View prices - Add to Cart Material IT
Internal thread (in)
ET
External thread (in)
A
Center length (in)
Max. force
Comp. gas spring (lbs)
Max. force
Extension gas springs (lbs)
SKU Stock Tech Drawing Read More 3D CAD
Galvanized steel 0.1575 0.1575 0.7087 22.4809 22.4809 EF-BJ016Z EF-BJ016Z
Plastic 0.2362 0.1969 0.7087 89.9236 N/A EF-BJ002PZ EF-BJ002PZ
Stainless steel 304 0.2362 0.1969 0.8661 89.9236 89.9236 EF-BJ004S EF-BJ004S
Galvanized steel 0.2362 0.1969 0.8661 89.9236 89.9236 EF-BJ004Z EF-BJ004Z
Galvanized steel 0.2362 0.2362 0.9843 101.1640 N/A EF-AJ001Z EF-AJ001Z
Stainless steel 316 0.2362 0.2362 0.9843 101.1640 N/A EF-60601-316 EF-60601-316
Galvanized steel 0.2362 0.2362 0.9843 101.1640 N/A EF-60601-Z EF-60601-Z
Plastic 0.2362 0.3150 0.7087 112.4045 N/A EF-BJ014PN EF-BJ014PN
Stainless steel 304 0.2362 0.3150 0.7087 146.1258 146.1258 EF-BJ012S EF-BJ012S
Galvanized steel 0.2362 0.3150 0.7087 146.1258 146.1258 EF-BJ012Z EF-BJ012Z

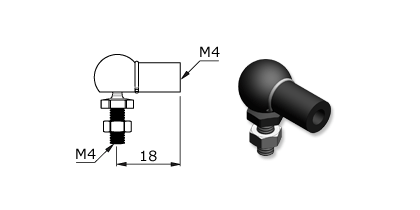

  1. EF-BJ016Z
    In stock: 904
    Material Galvanized steel
    IT - Internal thread (in) 0.1575
    ET - External thread (in) 0.1575
    A - Center length (in) 0.7087
    Max. force - Comp. gas spring (lbs) 22.4809
    Max. force - Extension gas springs (lbs) 22.4809
  2. EF-BJ002PZ
    In stock: 354
    Material Plastic
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.1969
    A - Center length (in) 0.7087
    Max. force - Comp. gas spring (lbs) 89.9236
    Max. force - Extension gas springs (lbs) N/A
  3. EF-BJ004S
    In stock: 1,861
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.1969
    A - Center length (in) 0.8661
    Max. force - Comp. gas spring (lbs) 89.9236
    Max. force - Extension gas springs (lbs) 89.9236
  4. EF-BJ004Z
    In stock: 1,095
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.1969
    A - Center length (in) 0.8661
    Max. force - Comp. gas spring (lbs) 89.9236
    Max. force - Extension gas springs (lbs) 89.9236
  5. EF-AJ001Z
    In stock: 36
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.2362
    A - Center length (in) 0.9843
    Max. force - Comp. gas spring (lbs) 101.1640
    Max. force - Extension gas springs (lbs) N/A
  6. EF-60601-316
    In stock: 180
    Material Stainless steel 316
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.2362
    A - Center length (in) 0.9843
    Max. force - Comp. gas spring (lbs) 101.1640
    Max. force - Extension gas springs (lbs) N/A
  7. EF-60601-Z
    In stock: 331
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.2362
    A - Center length (in) 0.9843
    Max. force - Comp. gas spring (lbs) 101.1640
    Max. force - Extension gas springs (lbs) N/A
  8. EF-BJ014PN
    In stock: 1,905
    Material Plastic
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.3150
    A - Center length (in) 0.7087
    Max. force - Comp. gas spring (lbs) 112.4045
    Max. force - Extension gas springs (lbs) N/A
  9. EF-BJ012S
    In stock: 944
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.3150
    A - Center length (in) 0.7087
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258
  10. EF-BJ012Z
    In stock: 1,198
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    ET - External thread (in) 0.3150
    A - Center length (in) 0.7087
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258
Page
per page
Material

We have end-fittings in 4 different materials:

  • Stainless Steel 316
  • Stainless Steel 304
  • Electro galvanized
  • Plastic

Not all end-fittings are available in all the different materials.
