Ball-socket

Technical drawing - Ball socket

100-70030-description

Galvanized steel

100-70084-description

Plastic

100-70023-description

Stainless steel 304

100-70024-description

Stainless steel 316

Shop By
Shopping Options
IT - Internal thread (in)
A - Center length (in)
S - Socket size (in)
Max. force - Comp. gas spring (lbs)
Max. force - Extension gas springs (lbs)

Items 1-10 of 23

Set Descending Direction
View prices - Add to Cart Material IT
Internal thread (in)
A
Center length (in)
S
Socket size (in)
Max. force
Comp. gas spring (lbs)
Max. force
Extension gas springs (lbs)
SKU Stock Tech Drawing Read More 3D CAD
Plastic 0.2362 0.7087 0.3937 89.9236 N/A EF-BS010PN EF-BS010PN
Plastic 0.2362 0.7087 0.3937 112.4045 N/A EF-BS001PN EF-BS001PN
Plastic 0.2362 0.7087 0.3937 112.4045 N/A EF-BS004P EF-BS004P
Plastic 0.2362 0.7087 0.3937 112.4045 N/A EF-BS014PN EF-BS014PN
Stainless steel 304 0.2362 0.7087 0.3937 146.1258 146.1258 EF-BS002S EF-BS002S
Galvanized steel 0.2362 0.7087 0.3937 146.1258 146.1258 EF-BS002Z EF-BS002Z
Stainless steel 316 0.2362 0.7087 0.3937 146.1258 146.1258 EF-BS002S-316 EF-BS002S-316
Stainless steel 304 0.2362 0.9843 0.3937 146.1258 146.1258 EF-BS013S EF-BS013S
Galvanized steel 0.2362 0.9843 0.3937 146.1258 146.1258 EF-BS013Z EF-BS013Z
Plastic 0.3150 0.7087 0.3937 112.4045 N/A EF-BS015PN EF-BS015PN

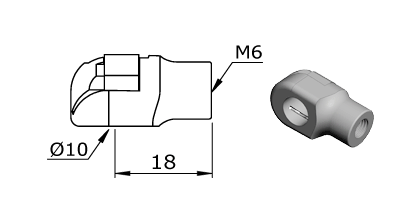

  1. EF-BS010PN
    In stock: 1,135
    Material Plastic
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 89.9236
    Max. force - Extension gas springs (lbs) N/A

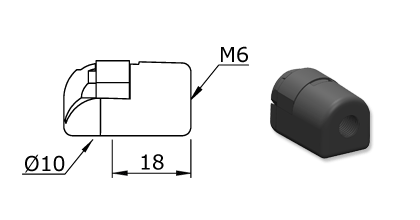

  2. EF-BS001PN
    In stock: 1,616
    Material Plastic
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 112.4045
    Max. force - Extension gas springs (lbs) N/A

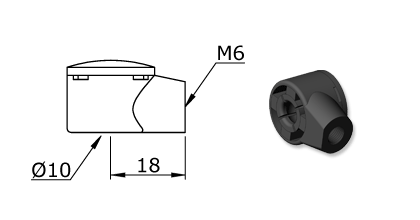

  3. EF-BS004P
    In stock: 1,082
    Material Plastic
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 112.4045
    Max. force - Extension gas springs (lbs) N/A

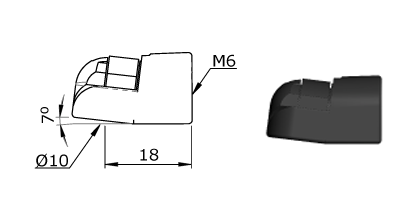

  4. EF-BS014PN
    In stock: 186
    Material Plastic
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 112.4045
    Max. force - Extension gas springs (lbs) N/A
  5. EF-BS002S
    In stock: 964
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258

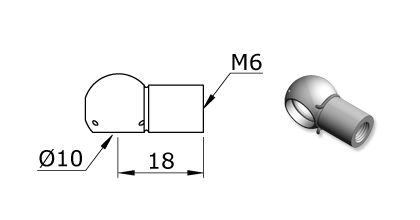

  6. EF-BS002Z
    In stock: 1,165
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258

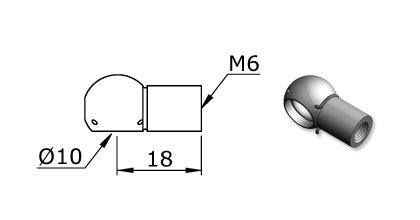

  7. EF-BS002S-316
    In stock: 1,521
    Material Stainless steel 316
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258

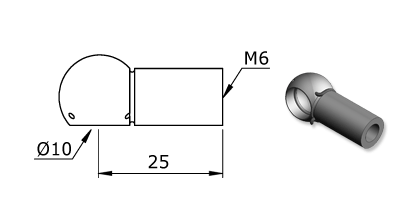

  8. EF-BS013S
    In stock: 2,099
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.9843
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258

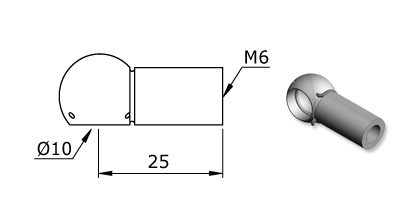

  9. EF-BS013Z
    In stock: 2,642
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.9843
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258

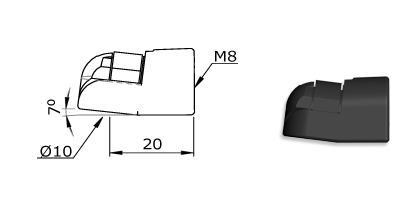

  10. EF-BS015PN
    In stock: 204
    Material Plastic
    IT - Internal thread (in) 0.3150
    A - Center length (in) 0.7087
    S - Socket size (in) 0.3937
    Max. force - Comp. gas spring (lbs) 112.4045
    Max. force - Extension gas springs (lbs) N/A
Page
per page
Material

We have end-fittings in 4 different materials:

  • Stainless Steel 316
  • Stainless Steel 304
  • Electro galvanized
  • Plastic

Not all end-fittings are available in all the different materials.
